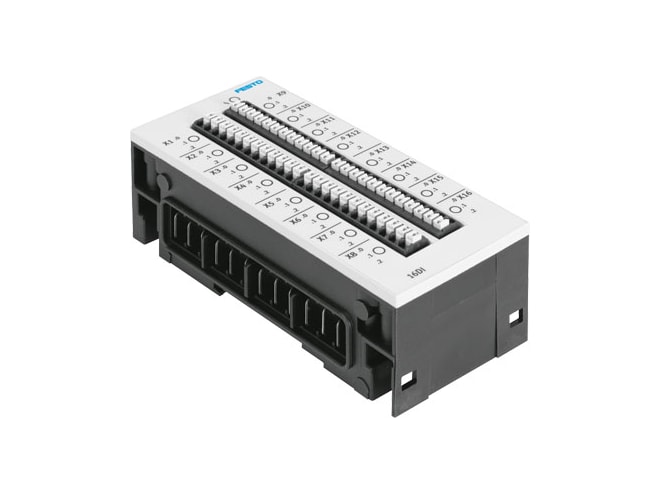

Festo CPX-L-16DE-16-KL-3POL Input Module

Features

• (incl. interlinking block) dimensions (W x l x h)
• 50 x 107 x 41 mm dimensions (W x l x h)
• 167G product weight
• IP20 degree of protection
• 1 - Low corrosion stress corrosion resistance class cRC
• (when installed) corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• C UL us listed (OL) approval
• RoHS-compliant note on materials
• PA-reinforced material housing
• 1 Group diagnostics lED display
• 16 Channel status lED display
• Short circuit/overload per channel diagnosis
• Input debounce time parameterisation
• Signal extension time parameterisation
• Behaviour after short circuit parameterisation
• Module monitoring parameterisation
• 18V operational voltage range dC
• 30V operational voltage range dC
• 24V nominal operating voltage dC
• Typ. 15 mA intern power consumption nominal operating voltage
• 16 number of inputs
• IEC1131-T2, type 01 characteristic for inputs
• Signal 0: <= 5 V switching level
• Signal 1: ≥ 15 V switching level
• PNP (positive switching) switching logic for inputs
• 3 ms (0.1 ms, 10 ms, 20 ms, parameterisable) input debounce time
• 1.8A max. residual current of inputs per module
• No isolation channel - channel
• No isolation channel - internal bus
• Internal electronic fuse per module fuse protection (short circuit)
• -5GC ambient temperature to 50GC ambient temperature
• -20GC to 70GC storage temperature
