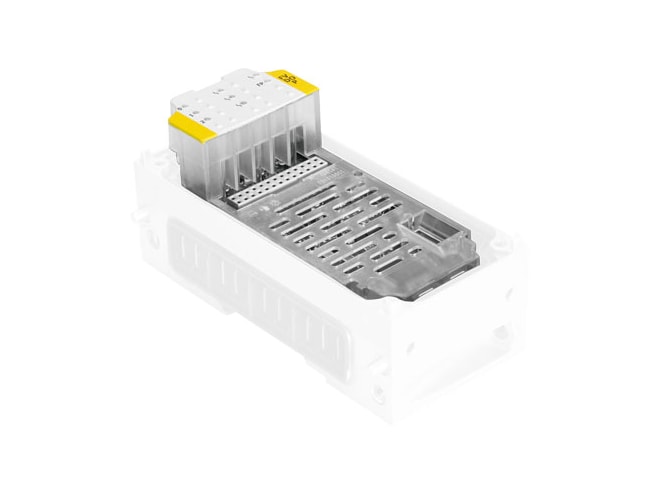

Festo CPX-FVDA-P2 Output Module

Features

• (incl. interlinking block and connection technology) dimensions (W x l x h)
• 50 x 107 x 55 mm dimensions (W x l x h)
• 50G product weight
• -5GC ambient temperature
• 50GC ambient temperature
• Observe derating curve for pneumatic interface note on ambient temperature
• Dependent on the manifold block degree of protection
• 1 - Low corrosion stress corrosion resistance class cRC
• (when installed) corrosion resistance class cRC
• 200 m max. cable length
• VDMA24364-B2-L lABS (PWIS) conformity
• To EU EMC Directive cE mark (see declaration of conformity)
• To EC Machinery Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK regulations for machines cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• C UL us - Recognized (OL) approval
• German Technical Control Board (TÜV) Rhld 01/205/5294.02/23 certificate issuing authority
• German Technical Control Board (TÜV) Rhld 01/205U/5294.01/23 certificate issuing authority
• RoHS-compliant note on materials
• PA-reinforced material housing
• PC material housing
• 1E-09 probability of failure per hour (PFH)
• 1 fail-safe mode protocol active lED display
• 1 Group diagnostics lED display
• 3 channel diagnostics lED display
• 3 Channel status lED display
• Wire break per channel diagnosis
• Short circuit/overload per channel diagnosis
• Cross circuit diagnosis
• Undervoltage of valves diagnosis
• 6AD max. address volume, inputs
• 6AD max. address volume, outputs
• 2 number of outputs
• 1 internal channel to switch off the valve voltage note on outputs
• 2 external outputs note on outputs
• Diagnostic behaviour parameterisation
• Wire break monitoring per channel parameterisation
• 24V nominal operating voltage dC
• -15%/+20% permissible voltage fluctuations
• 2 Vpp within voltage range residual ripple
• Typically 25 mA (power supply for electronics) intern power consumption nominal operating voltage
• Typ. 65 mA (load voltage supply for valve) intern power consumption nominal operating voltage
• 400C41 load capacity against fE
• P-M switching switching logic for outputs
• F_WD_TIME + 23 ms max. reaction time to switch-off command
• Safely switching off supply voltage for the valves safety function
• Safe switch-off/SIL 3 safety integrity level (SIL)
• Safe switch-off/category 3, Performance Level e performance level (PL)
• 1.5 A max. power supply per channel
• 5A max. total current per module
• 0.6V voltage drop per channel
• No isolation channel - channel
• Yes, with intermediate air supply isolation channel - internal bus
• Internal electronic fuse per channel fuse protection (short circuit)
• -20GC to 70GC storage temperature
