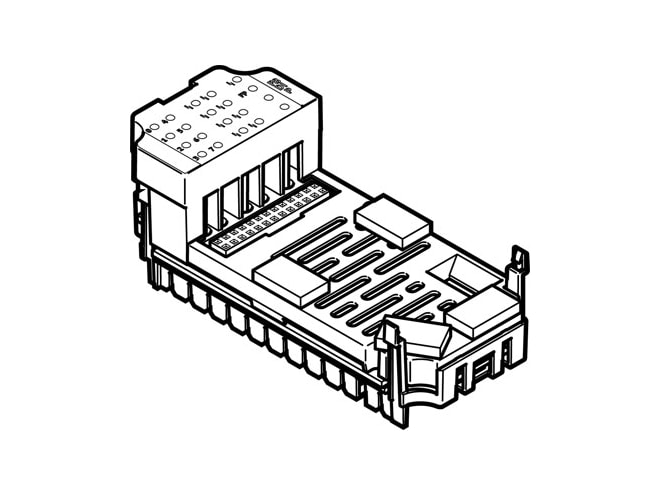

Festo CPX-F8DE-P Input Module

Name: Festo CPX-F8DE-P Input Module
Price: 609.48 USD
Availability: BackOrder

Digital module: PROFIsafe input module with 8 digital inputs. View other configurations.

$609.48

Part Numbers

CPX-F8DE-P
2597424

Highlights...

CPX-F8DE-P
By Festo
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

(incl. interlinking block and connection technology) dimensions (W x l x h)
50 x 107 x 55 mm dimensions (W x l x h)
46G product weight
Dependent on the manifold block degree of protection
1 - Low corrosion stress corrosion resistance class cRC
(when installed) corrosion resistance class cRC
200 m max. cable length
VDMA24364-B2-L lABS (PWIS) conformity
To EU EMC Directive cE mark (see declaration of conformity)
To EC Machinery Directive cE mark (see declaration of conformity)
In accordance with EU RoHS Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
To UK regulations for machines cE marking (see declaration of conformity)
To UK RoHS instructions cE marking (see declaration of conformity)
C UL us - Recognized (OL) approval
01/205/5444.01/21 certificate issuing authority
German Technical Control Board (TÜV) Rh. UK 01/205U/5444.00/22 certificate issuing authority
RoHS-compliant note on materials
1E-09 probability of failure per hour (PFH)
1 fail-safe mode protocol active lED display
1 Group diagnostics lED display
8 channel diagnostics lED display
8 Channel status lED display
Wire break per channel diagnosis
Communication diagnosis
Short circuit per channel diagnosis
Process value error diagnosis
Cross circuit per channel diagnosis
Self-test diagnosis
Overvoltage diagnosis
Overtemperature diagnosis
Undervoltage diagnosis
DIL switch operator controls
6AD max. address volume, inputs
7AD max. address volume, outputs
20.4V operational voltage range dC
28.8V operational voltage range dC
24V nominal operating voltage dC
2 Vpp within voltage range residual ripple
Typ. 35 mA (power supply for electronics) intern power consumption nominal operating voltage
8 number of inputs
To IEC 61131-2, type 2 characteristic for inputs
PNP (positive switching) switching logic for inputs
Reliable detection and evaluation of input statuses safety function
Reliable detection and evaluation of input statuses in accordance with EN 62061 up to SIL CL3 safety integrity level (SIL)
Reliable detection and evaluation of input statuses in accordance with EN61508 up to SIL CL3 safety integrity level (SIL)
Reliable detection and evaluation of input statuses in accordance with ISO 13849 up to category 4 and Performance Level e performance level (PL)
3A max. total current per module
No isolation channel - channel
-5GC ambient temperature to 50GC ambient temperature
-20GC to 70GC storage temperature
