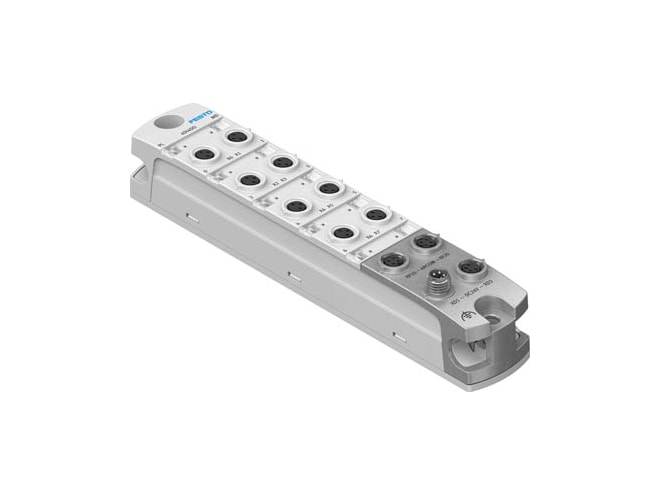

Festo CPX-AP-I-4DI4DO-M8-3P Digital Input/output Module

Name: Festo CPX-AP-I-4DI4DO-M8-3P Digital Input/output Module
Price: 262.3 USD
Availability: InStock

Input/output module. Up to 80 individual modules/valve terminals per bus interface. Interface design: Not applicable. M8 connection. View other configurations.

$262.30

Part Numbers

CPX-AP-I-4DI4DO-M8-3P
8086601

Highlights...

CPX-AP-I-4DI4DO-M8-3P
By Festo
FREE Shipping on orders of $1,000 or more
Manufacturer has 223 in stock.
Additional 2-3 days to process. Call for expedite options.

Features

30 x 170 x 35 mm dimensions (W x l x h)
On H-rail via accessories type of mounting
With through-hole type of mounting
129G product weight
5 - 95% relative air humidity
Non-condensing relative air humidity
IP65 degree of protection
IP67 degree of protection
Unused connections sealed note on degree of protection
1 - Low corrosion stress corrosion resistance class cRC
30 m outputs max. cable length
30 m inputs max. cable length
50 m system communication max. cable length
Power supply according to nominal voltage note on max. cable length
VDMA24364-B2-L lABS (PWIS) conformity
To EU EMC Directive cE mark (see declaration of conformity)
To UK instructions for EMC cE marking (see declaration of conformity)
KC-EMV kC mark
RCM trademark approval
C UL us listed (OL) approval
UL E239998 certificate issuing authority
RoHS-compliant note on materials
PA material housing
PC material housing
Die-cast zinc, nickel-plated material housing
FPM material o-ring
Diagnostics per module diagnostics via lED
Load power supply diagnostics via lED
Status per channel diagnostics via lED
Load switch-off diagnostics per internal communication
Short-circuit/overload in output signal diagnostics per internal communication
Short circuit/overload in sensor supply diagnostics per internal communication
Electronics/sensors overvoltage diagnostics per internal communication
Load overvoltage diagnostics per internal communication
Electronics/sensors undervoltage diagnostics per internal communication
Load undervoltage diagnostics per internal communication
4 number of outputs
System communication XF10 IN / XF20 OUT communication interface, function
2x socket communication interface, connection type
M8x1, D-coded according to EN 61076-2-114 communication interface, connection technology
4 communication interface, number of pins/wires
AP communication interface, protocol
Yes communication interface, shielding
Incoming electronics/sensors and load power supply, function
Plugs power supply, connection type
M8x1, A-coded to EN 61076-2-104 power supply, connection system
4 power supply, number of pins/wires
Outgoing electronics/sensors and load power transmission, function
Socket power transmission, connection type
M8x1, A-coded to EN 61076-2-104 power transmission, connection technology
4 power transmission, number of pins/wires
SELV/PELV fixed power supplies required note regarding operating voltage
Note voltage drop note regarding operating voltage
24V nominal operating voltage dC of load
± 25 % permissible voltage fluctuation of load
24V nominal dC operating voltage, electronics/sensors
± 25% permissible voltage fluctuations for electronics/sensors
2 x 4 A (external fuse required) max. power supply
Typically 35 mA intrinsic current consumption at nominal operating voltage for electronics/sensors
Typically 10 mA intrinsic current consumption at nominal operating voltage load
10MS power failure bridging
Yes reverse polarity protection
Digital input electrical connection input, function
4x socket electrical connection input, connection type
M8x1, A-coded to EN 61076-2-104 electrical connection input, connector system
3 electrical connection input, number of connections/cores
4 number of inputs
To IEC 61131-2, type 3 characteristic for inputs
Signal 0: <= 5 V switching level
Signal 1: >= 11 V switching level
PNP (positive switching) switching logic for inputs
2-wire sensors to IEC 61131-2 switching logic for inputs
3-wire sensors to IEC 61131-2 switching logic for inputs
0.1 ms input debounce time
3 ms input debounce time
10 ms input debounce time
20 ms input debounce time
Internal electronic fuse per module fuse protection of inputs (short circuit)
1.8A max. residual current of inputs per module
No electrical isolation of inputs between channels
Yes electrical isolation of inputs between channel - internal communication
Digital output electrical connection output, function
4x socket electrical connection output, connection type
M8x1, A-coded to EN 61076-2-104 electrical connection output, connector system
3 electrical connection output, number of connections/cores
According to IEC 61131-2, type 0.5 characteristic for outputs
PNP (positive switching) switching logic for outputs
Internal electronic fuse per channel fuse protection of outputs (short circuit)
Signal change 0->1: < 200 µs output delay with ohmic load
Signal change 1->0: < 200 µs output delay with ohmic load
2A max. residual current outputs per module
No electrical isolation of outputs between channels
Yes electrical isolation of outputs between channel - internal communication
0.5 A max. power supply per channel
-20GC ambient temperature to 50GC ambient temperature
-40GC to 70GC storage temperature
