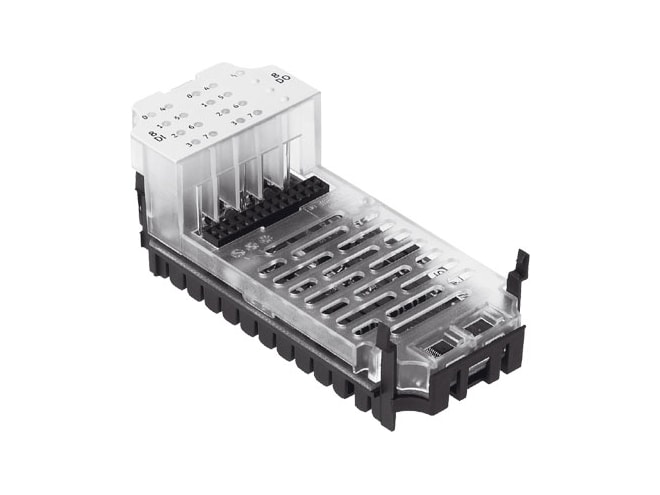

Festo CPX-8DE-8DA Input/output Module

Digital module: Input/output module with 8 digital inputs and 8 digital outputs. View other configurations.

$277.82
Part Numbers
  • CPX-8DE-8DA
  • 526257
Highlights...

Features

  • (incl. interlinking block and connection technology) dimensions (W x l x h)
  • 50 x 107 x 50 mm dimensions (W x l x h)
  • 48G product weight
  • Dependent on the manifold block degree of protection
  • 1 - Low corrosion stress corrosion resistance class cRC
  • (when installed) corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • PA-reinforced material housing
  • PC material housing
  • 1 Group diagnostics lED display
  • 16 Channel status lED display
  • Short circuit/overload per channel diagnosis
  • Undervoltage of outputs diagnosis
  • 8 number of outputs
  • Input debounce time parameterisation
  • Fail-safe per channel parameterisation
  • Forcing per channel parameterisation
  • Idle mode per channel parameterisation
  • Signal extension time parameterisation
  • Behaviour after short circuit parameterisation
  • Module monitoring parameterisation
  • 18V operational voltage range dC
  • 30V operational voltage range dC
  • 24V nominal operating voltage dC
  • Typ. 22 mA intern power consumption nominal operating voltage
  • 8 number of inputs
  • IEC1131-T2 characteristic for inputs
  • 3 ms (0.1 ms, 10 ms, 20 ms, parameterisable) input debounce time
  • 0.7A max. residual current of inputs per module
  • IEC1131-T2 characteristic for outputs
  • PNP (positive switching) switching logic for outputs
  • 4A max. residual current outputs per module
  • 0.5 A (12 W lamp load) max. power supply per channel
  • No isolation channel - channel
  • Outputs - yes, when using an intermediate air supply isolation channel - internal bus
  • Internal electronic fuse per channel fuse protection (short circuit)
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 70GC storage temperature
