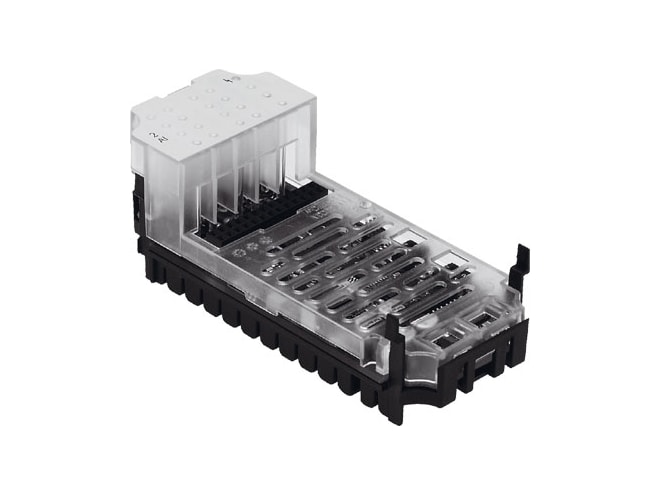

Festo CPX-2AE-U-I Analog Module

Features

• (incl. interlinking block and connection technology) dimensions (W x l x h)
• 50 x 107 x 50 mm dimensions (W x l x h)
• 48G product weight
• -5GC ambient temperature
• 50GC ambient temperature
• Dependent on the manifold block degree of protection
• 1 - Low corrosion stress corrosion resistance class cRC
• (when installed) corrosion resistance class cRC
• 30 m max. cable length
• Shielded max. cable length
• VDMA24364-B2-L lABS (PWIS) conformity
• PA-reinforced material housing
• PC material housing
• 1 Group diagnostics lED display
• Wire break per channel diagnosis
• Limit value violation per channel diagnosis
• Short circuit, input signal diagnosis
• Parameterisation error diagnosis
• Data format parameterisation
• Forcing per channel parameterisation
• Limit monitoring per channel parameterisation
• Measured value smoothing parameterisation
• Signal range per channel parameterisation
• Behaviour after short circuit parameterisation
• Wire break monitoring per channel parameterisation
• 4 ms internal cycle time
• 18V operational voltage range dC
• 30V operational voltage range dC
• 24V nominal operating voltage dC
• Typ. 50 mA intern power consumption nominal operating voltage
• 2 number of inputs
• 12 bits + prefix data format
• Scalable to 15 bits data format
• 0.15% at 25°C repetition accuracy
• +/- 0.3% for voltage inputs basic error limit at 25 °C
• +/-0.5% for voltage inputs operating error limit related to the ambient temperature range
• 0 - 10 V sensor type
• 0 - 20 mA sensor type
• 4 - 20 mA sensor type
• No isolation channel - channel
• Yes, without using the internal sensor supply isolation channel - internal bus
• Internal electronic fuse fuse protection (short circuit)
• -20GC to 70GC storage temperature
