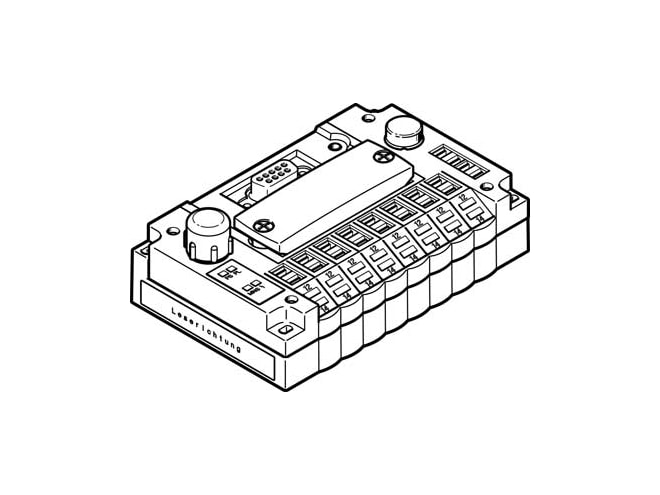

Festo CPV14-GE-DI02-8 Electrical Interface

$797.75
Part Numbers
  • CPV14-GE-DI02-8
  • 546190
Highlights...

Features

  • Yes cP string expansion
  • 32 inputs cP string expansion
  • 32 outputs cP string expansion
  • Either: field bus interface
  • Socket and plug, M12x1, 5-pin, B-coded field bus interface
  • Sub-D, 9-pin, socket field bus interface
  • Via device-specific diagnostics (DPV0) device-specific diagnostics
  • Missing module on CP string extension device-specific diagnostics
  • Short circuit/overload, outputs device-specific diagnostics
  • Undervoltage of outputs device-specific diagnostics
  • Undervoltage of sensor supply device-specific diagnostics
  • Undervoltage of valves device-specific diagnostics
  • Cyclic communication types of communication
  • GSD file and bitmaps configuration support
  • 48 max. number of valve coils with string expansion
  • 16 max. number of valve coils
  • For all electrical connections reverse polarity protection
  • 9.6 kBaud ... 12 MBaud baud rate
  • Automatic detection baud rate
  • 20.4V operational voltage range dC
  • 26.4V operational voltage range dC
  • 16 solenoid coils and 32 outputs max. number of outputs
  • 48 solenoid coils max. number of outputs
  • 32 max. number of inputs
  • 24V nominal operating voltage dC
  • 10MS power failure bridging
  • 4 Vpp residual ripple
  • Depending on valve type current consumption at nominal operating voltage, load
  • Electronics: <= 100 mA current consumption at nominal operating voltage
  • Sensor supply: dependent on sensor current consumption at nominal operating voltage
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • IP65 degree of protection
  • C UL us - Recognized (OL) approval
  • 310G product weight
  • 1 ... 125 addressing range
  • Set using switch module addressing range
  • PNO fieldbus certification
  • Optocoupler electrical isolation fieldbus interface
  • BUS: Communication and configuration errors lED display, bus-specific
  • 12/14: switching status of valves lED display, product-specific
  • POWER: Operating voltage for electronics and load supply lED display, product-specific
  • Product series: 4: Valves product identification
  • PA-reinforced material cover
  • CR material seals
  • NBR material seals
  • Die-cast aluminium material housing
  • RoHS-compliant note on materials
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 70GC storage temperature
