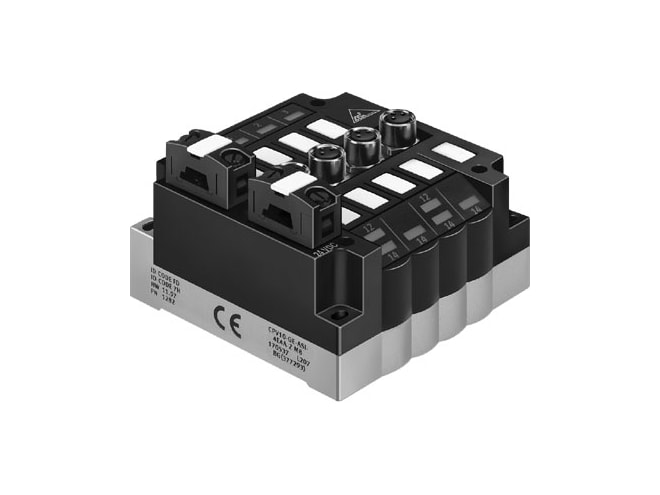

Festo CPV10-GE-ASI-4E4A-Z-M8-CE Electrical Interface

Features

• AS-Interface: flat cable plug field bus interface
• Load voltage: flat cable plug field bus interface
• Short circuit/overload of inputs device-specific diagnostics
• 4 max. number of valve positions
• 4 max. number of valve coils
• For all electrical operating voltage connections reverse polarity protection
• 1 number of slaves per device
• 26.5V operating voltage dC aS-interface
• 31.6V operating voltage dC aS-interface
• 3MS debounce time for inputs
• Via load voltage connection (24 V DC) note on load voltage
• 21.6V load voltage range dC
• 26.4V load voltage range dC
• 4 max. number of inputs
• 26.5V nominal dC operating voltage, aS-interface
• 24V nominal load voltage dC
• 20 mVpp residual ripple, aS interface
• 4 Vpp residual ripple, load voltage
• Signal 0: <= 5 V switching level
• Signal 1: >= 11 V switching level
• Inputs: 200 mA current consumption with load supply from aS-interface connection and load voltage connection
• Electronics: 20 mA current consumption with load supply from aS-interface connection and load voltage connection
• Valves: 115 mA (depending on valve type) current consumption with load supply from aS-interface connection and load voltage connection
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 0 - 95% relative air humidity
• Non-condensing relative air humidity
• IP65 degree of protection
• In assembled state degree of protection
• 151G product weight
• To IEC 1131-2, type 02 characteristic for inputs
• PNP (positive switching) switching logic for inputs
• 1A ... 31A (0) addressing range
• 1B ... 31B addressing range
• Set using AS-Interface addressing device addressing range
• Optocoupler electrical isolation fieldbus interface
• AS-i: AS-Interface mode lED display, bus-specific
• Aux/Pwr: AS-Interface power supply lED display, bus-specific
• Fault: AS-Interface fault lED display, bus-specific
• 0 ... 3: Switching status of inputs lED display, product-specific
• 12/14: switching status of valves (on valve) lED display, product-specific
• ID code: ID=Ah, ID1=7h, ID2=7h product identification
• IO code: 7h product identification
• Profile: S-7.A.7 product identification
• PA-reinforced material cover
• CR material seals
• NBR material seals
• Die-cast aluminium material housing
• RoHS-compliant note on materials
• -5GC ambient temperature to 50GC ambient temperature
• -20GC to 70GC storage temperature
