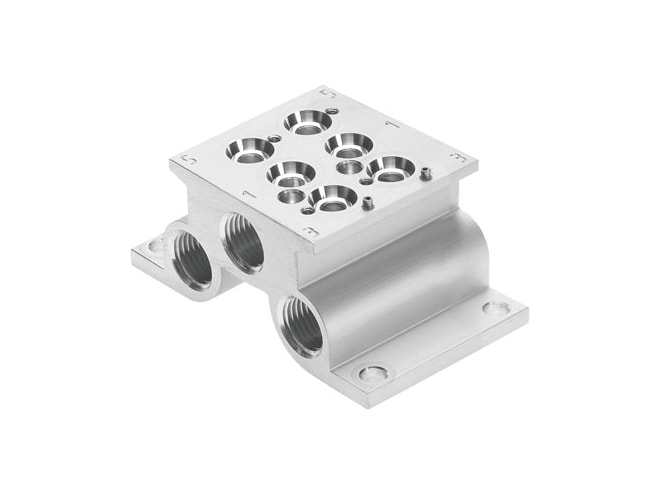

Festo CPE14-PRS-3/8-2-NPT Manifold Block

$53.56
Part Numbers
  • CPE14-PRS-3/8-2-NPT
  • 550079
Highlights...

Features

  • 20MM grid dimension
  • Optional mounting position
  • 2 max. number of valve positions
  • 2 max. number of pressure zones
  • 5MPA burst pressure
  • 50BAR burst pressure
  • 725PSI burst pressure
  • -0.09MPA operating pressure
  • 1MPA operating pressure
  • -0.9BAR operating pressure
  • 10BAR operating pressure
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -5FA media temperature
  • 50FA media temperature
  • 1.22FLB max. tightening torque for valve mounting
  • 237.148OZ product weight
  • With through-hole type of mounting in-line valve manifold
  • Via female thread mounting method for valve
  • RoHS-compliant note on materials
  • Wrought aluminium alloy material manifold rail
  • -5FA ambient temperature to 50FA ambient temperature
  • Pneumatic connection 3/8 NPT , port 1
  • Pneumatic connection 3/8 NPT , port 3
  • Pneumatic connection 3/8 NPT , port 5
