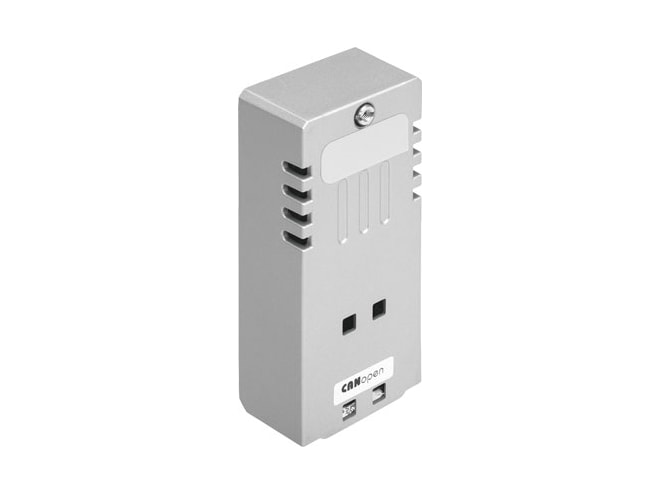

Festo CDPX-F-CO Bus Interface

$477.59
Part Numbers
  • CDPX-F-CO
  • 575301
Highlights...

Features

  • 24MM mounting depth
  • 91MM height
  • 41MM length
  • C-Tick approval
  • C UL us listed (OL) approval
  • To EU EMC Directive cE mark (see declaration of conformity)
  • In accordance with EU RoHS Directive cE mark (see declaration of conformity)
  • To UK instructions for EMC cE marking (see declaration of conformity)
  • To UK RoHS instructions cE marking (see declaration of conformity)
  • VDMA24364 zone III lABS (PWIS) conformity
  • 5 - 85 % relative air humidity
  • Non-condensing relative air humidity
  • IP20 degree of protection
  • 150G product weight
  • RoHS-compliant note on materials
  • CANopen fieldbus interface
  • Plugs field bus interface, connection system
  • Sub-D field bus interface, connection system
  • 9-pin field bus interface, connection system
  • 9.6 kbit/s to 1 Mbit/s field bus interface, transmission rate
  • 0GC ambient temperature to 50GC ambient temperature
  • -20GC to 70GC storage temperature
