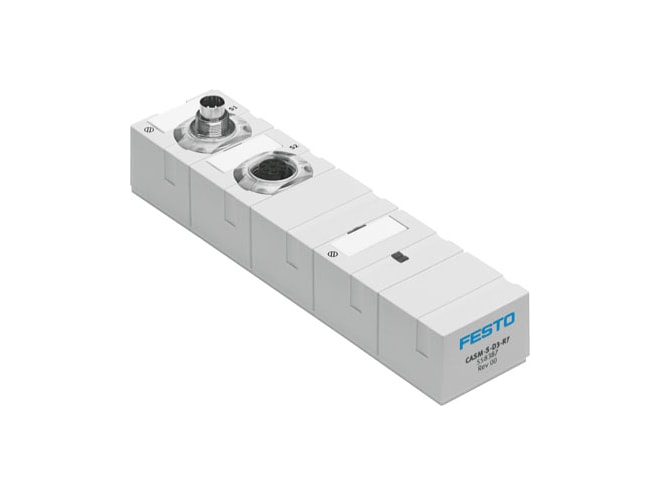

Festo CASM-S-D3-R7 Sensor Interface

Features

• Display via LED diagnostic function
• Optional mounting position
• PELV power supply requirements
• 24V nominal operating voltage dC
• 10MS power failure bridging
• 4 Vpp residual ripple
• 40 - 50 mA current consumption at nominal operating voltage
• +/- 25% permissible voltage fluctuations
• RCM trademark approval
• KC-EMV kC mark
• To EU EMC Directive cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• Tested to severity level 2 continuous shock resistance to dIN/IEC 68 part 2-82
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 95 % relative air humidity
• Non-condensing relative air humidity
• IP67 degree of protection
• Plug connector in mated condition degree of protection
• Tested to severity level 2 vibration resistance to dIN/IEC 68 part 2-6
• 128G product weight
• M12 electrical connection measuring system
• Socket electrical connection measuring system
• 8-pin electrical connection measuring system
• Plugs electrical connection control interface
• M9 electrical connection control interface
• 5-pin electrical connection control interface
• Digital control-Interface
• CAN bus with Festo protocol control-Interface
• Without terminating resistor control-Interface
• With through-hole type of mounting
• PBT-reinforced material housing
• 0GC ambient temperature to 55GC ambient temperature
• -20GC to 70GC storage temperature
