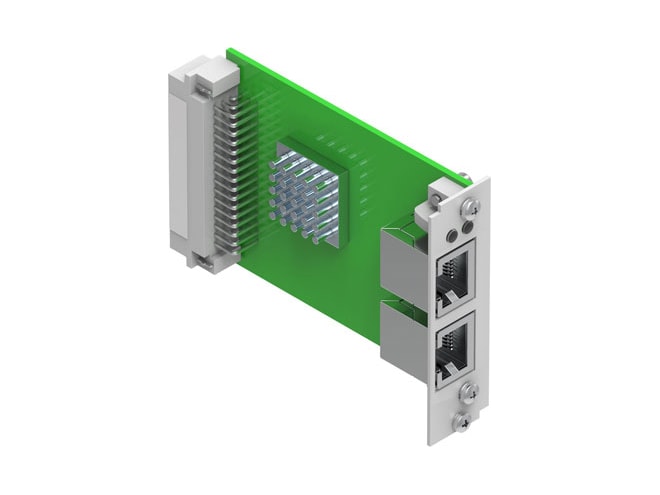

Festo CAMC-F-PN Interface

$529.98
Part Numbers
  • CAMC-F-PN
  • 1911916
Highlights...

Features

  • 19 x 90 x 65 mm dimensions (W x l x h)
  • To EU EMC Directive cE mark (see declaration of conformity)
  • VDMA24364 zone III lABS (PWIS) conformity
  • 5 - 95% relative air humidity
  • Non-condensing relative air humidity
  • IP20 degree of protection
  • In assembled state degree of protection
  • 75G product weight
  • Plug-in module for CMMP-AS...-M3 type of mounting
  • RoHS-compliant note on materials
  • Optional mounting position
  • PROFINET protocol
  • FHPP communication profile
  • 10/100 Mbit/s (full/half) baud rate
  • Star topologies
  • Ring topologies
  • Line topologies
  • MRP media redundancy
  • FCT iP address allocation
  • DCP iP address allocation
  • 2x RJ45 socket field bus interface
  • 1MS min. cycle time
  • Bus fault lED display
  • Ethernet communication activity lED display
  • Ethernet line monitoring lED display
  • System fault lED display
  • GSDML configuration support
  • FCT parameterisation
  • Conformance class B additional functions
  • DCP additional functions
  • IRT-compatible additional functions
  • LLDP additional functions
  • MRP additional functions
  • PROFIenergy additional functions
  • Real-time class 1 additional functions
  • SNMP additional functions
  • 0GC ambient temperature to 50GC ambient temperature
  • -25GC to 70GC storage temperature
