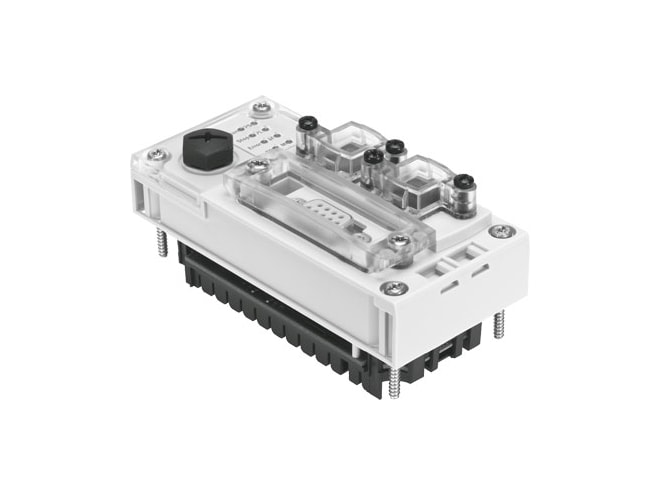

Festo CPX-CEC Control Block

Features

• CODESYS Level 2 protocol
• EasyIP protocol
• Modbus® TCP protocol
• TCP/IP protocol
• 50 x 107 x 55 mm dimensions (W x l x h)
• 155G product weight
• 95 % relative air humidity
• Non-condensing relative air humidity
• IP65 degree of protection
• IP67 degree of protection
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• PA-reinforced material housing
• PC material housing
• ERR: PLC runtime error lED display, product-specific
• M: Modify/forcing active lED display, product-specific
• PL: Load supply lED display, product-specific
• PS: Electronics supply, sensor supply lED display, product-specific
• RUN: PLC status lED display, product-specific
• SF: System fault lED display, product-specific
• STOP: PLC status lED display, product-specific
• TP: Link/traffic lED display, bus-specific
• Channel-oriented and module-oriented diagnostics device-specific diagnostics
• Undervoltage/short circuit of modules device-specific diagnostics
• Diagnostic memory device-specific diagnostics
• Rotary switch for RUN/STOP operator controls
• DHCP iP address setting
• Via CODESYS iP address setting
• Via MMI iP address setting
• RJ45 (socket, 8-pin) ethernet interface
• 1 ethernet, number
• TCP/IP, EasyIP, Modbus TCP ethernet, supported protocols
• RJ45 ethernet, plug connector
• Bushing ethernet, plug connector
• 8-pin ethernet, plug connector
• 10/100 Mbit/s ethernet, data transmission rate
• CoDeSys V2.3 parameterisation
• 10/100 bit/s to IEEE 802.3 (10BaseT) or 802.3u (100BaseTx) baud rate
• CODESYS V2.3 configuration support
• Diagnostic functions additional functions
• RS232 communication function additional functions
• 32 MB flash cPU data
• 32 MB RAM cPU data
• 400 MHz processor cPU data
• 24V nominal operating voltage dC
• Without pneumatic components: 18 ... 30 V nominal dC operating voltage, load voltage
• 24 V nominal dC operating voltage, load voltage
• With pneumatics type midi/maxi: 21.6 ... 26.4 V nominal dC operating voltage, load voltage
• With pneumatics type CPA: 20.4 ... 26.4 V nominal dC operating voltage, load voltage
• With pneumatics type MPA: 18 ... 30 V nominal dC operating voltage, load voltage
• Typ. 85 mA intern power consumption nominal operating voltage
• 10MS power failure bridging
• RS 232 interface data interface
• Sub-D, 9-pin, bushing data interface
• 9.6 ... 230.4 kbit/s data interface
• Galvanically isolated data interface
• DE, EN programming, operating language
• To IEC 61131-3 programming language
• KOP programming language
• AWL programming language
• ST programming language
• FUP programming language
• AS programming language
• Additionally CFC programming language
• Yes programming, support for file handling
• CODESYS provided by Festo V2.3 programming software
• 4 MB user program program memory
• Approx. 200 µs/1 k instruction processing time
• Read CPX module diagnostics function modules
• CPX diagnostic status function modules
• Copy CPX diagnostic trace function modules
• And others function modules
• 30 kB remanent data flag
• 8 MB global data memory flag
• CODESYS variable concept flag
• -5GC ambient temperature to 50GC ambient temperature
• -20GC to 70GC storage temperature
